[docker] harbor 설치 (harbor-offline-installer 방식)

2022. 9. 3. 00:23

프라이빗 docker registry 서비스인 harbor 서비스를 docker로 설치하는 가이드를 작성합니다.

일반적으로 docker는 오피셜 docker hub에서 docker image를 다운로드하게 됩니다.
docker image가 배포되는 docker hub 같은 저장소를 docker registry라고 하는데
docker hub는 누구나 사용 가능한 오픈된 공간이기 때문에 회사나 개인용으로 수정된 docker image를
docker hub에 업로드해서 오픈하기에는 보안상 적합하지 않습니다.

이런 경우에 회사 업무나 개인용으로 따로 격리된 private registry 서버의 필요성이 생기는데
harbor는 그 역할을 가능하게 해주는 private registry 서버를 제공하는 서비스입니다.

본 가이드는 시놀로지 DS1019+ 에서 동작을 확인한 가이드입니다.

Tip. 가이드 작성하면서 harbor 설치해본 결과, Intel/AMD 계열에서 설치가 가능했고
OCI A1 arm64 인스턴스에서는 설치되지 않았으니, 서버 arch 환경에 대한 확인이 필요합니다.

1. harbor 다운로드 사이트에서 최신 버전 확인

Harbor

Our mission is to be the trusted cloud native repository for Kubernetes

goharbor.io

2. harbor 인스톨 파일 다운로드

tip 1. 본 가이드는 현재 최신 버전인 harbor-offline-installer-v2.6.0.tgz (721MB) 파일을 기준으로 설명합니다.

설치 타입	링크
harbor-offline-installer-v2.6.0.tgz (721MB)	https://github.com/goharbor/harbor/releases/download/v2.6.0/harbor-offline-installer-v2.6.0.tgz
harbor-online-installer-v2.6.0.tgz (10.4KB)	https://github.com/goharbor/harbor/releases/download/v2.6.0/harbor-online-installer-v2.6.0.tgz

tip 2. 제 시놀로지 DS1019+ 에서는 wget이 ssl을 지원하지 못하여 ssh shell 상에서 바로 다운로드가 불가능합니다.
때문에 일반 윈도우 PC에서 harbor-offline-installer-v2.6.0.tgz (721MB) 파일을 다운로드한 다음에
samba로 시놀로지에 옮겨 주었습니다.

// 시놀로지 DS1019+에 설치된 wget 에서 htts 지원하지 않음
$ curl -s https://api.github.com/repos/goharbor/harbor/releases/latest | grep browser_download_url | cut -d '"' -f 4 | grep '\.tgz$' | wget -i -
-: Invalid URL https://github.com/goharbor/harbor/releases/download/v2.6.0/harbor-offline-installer-v2.6.0.tgz: HTTPS support not compiled in
-: Invalid URL https://github.com/goharbor/harbor/releases/download/v2.6.0/harbor-online-installer-v2.6.0.tgz: HTTPS support not compiled in
No URLs found in -.

$ wget --version
GNU Wget 1.12 built on linux-gnu.

// 구글링 해보고, wget 삭제하고 wget-ssl으로 다시 설치
$ sudo ipkg remove wget
Password:
Removing package wget from root...
Successfully terminated.

$ sudo ipkg install wget-ssl
Installing wget-ssl (1.12-2) to root...
Downloading http://ipkg.nslu2-linux.org/feeds/optware/syno-i686/cross/unstable/wget-ssl_1.12-2_i686.ipk
Configuring wget-ssl
Successfully terminated.

// wget-ssl 설치하고 뭔가 더 진행됬지만, 결국 SSL 에러 발새하면서 wget으로 https 파일 다운로드 안됨
$ curl -s https://api.github.com/repos/goharbor/harbor/releases/latest | grep browser_download_url | cut -d '"' -f 4 | grep '\.tgz$' | wget -i -
--2022-09-03 00:53:53-- https://github.com/goharbor/harbor/releases/download/v2.6.0/harbor-offline-installer-v2.6.0.tgz
Resolving github.com (github.com)... 20.200.245.247
Connecting to github.com (github.com)|20.200.245.247|:443... connected.
OpenSSL: error:1407742E:SSL routines:SSL23_GET_SERVER_HELLO:tlsv1 alert protocol version
Unable to establish SSL connection.
--2022-09-03 00:53:53-- https://github.com/goharbor/harbor/releases/download/v2.6.0/harbor-online-installer-v2.6.0.tgz
Connecting to github.com (github.com)|20.200.245.247|:443... connected.
OpenSSL: error:1407742E:SSL routines:SSL23_GET_SERVER_HELLO:tlsv1 alert protocol version
Unable to establish SSL connection.

$ wget --version
GNU Wget 1.12 built on linux-gnu.

tip 3. 시놀로지의 console이 아닌 일반 ubuntu 리눅스 환경이라면 아래 커맨드로 쉽게 다운로드 가능합니다.

$ curl -s https://api.github.com/repos/goharbor/harbor/releases/latest | grep browser_download_url | cut -d '"' -f 4 | grep '\.tgz$' | wget -i -

// 일반 ubuntu 리눅스 환경에서는 wget으로 https 잘 다운로드 됨
$ curl -s https://api.github.com/repos/goharbor/harbor/releases/latest | grep browser_download_url | cut -d '"' -f 4 | grep '\.tgz$' | wget -i -
--2022-09-03 00:50:57--  https://github.com/goharbor/harbor/releases/download/v2.6.0/harbor-offline-installer-v2.6.0.tgz
Resolving github.com (github.com)... 20.200.245.247
Connecting to github.com (github.com)|20.200.245.247|:443... connected.
HTTP request sent, awaiting response... 302 Found
Location: https://objects.githubusercontent.com/github-production-release-asset-2e65be/50613991/31d45386-99bc-4f05-a7e9-a8e1dca32a9e?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAIWNJYAX4CSVEH53A%2F20220902%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20220902T155049Z&X-Amz-Expires=300&X-Amz-Signature=ef73cdd9e7fd9bb3def78f96fc2add316f3481927b7ef44551ab7e123e3f61c6&X-Amz-SignedHeaders=host&actor_id=0&key_id=0&repo_id=50613991&response-content-disposition=attachment%3B%20filename%3Dharbor-offline-installer-v2.6.0.tgz&response-content-type=application%2Foctet-stream [following]
--2022-09-03 00:50:57--  https://objects.githubusercontent.com/github-production-release-asset-2e65be/50613991/31d45386-99bc-4f05-a7e9-a8e1dca32a9e?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAIWNJYAX4CSVEH53A%2F20220902%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20220902T155049Z&X-Amz-Expires=300&X-Amz-Signature=ef73cdd9e7fd9bb3def78f96fc2add316f3481927b7ef44551ab7e123e3f61c6&X-Amz-SignedHeaders=host&actor_id=0&key_id=0&repo_id=50613991&response-content-disposition=attachment%3B%20filename%3Dharbor-offline-installer-v2.6.0.tgz&response-content-type=application%2Foctet-stream
Resolving objects.githubusercontent.com (objects.githubusercontent.com)... 185.199.110.133, 185.199.109.133, 185.199.108.133, ...
Connecting to objects.githubusercontent.com (objects.githubusercontent.com)|185.199.110.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 756124163 (721M) [application/octet-stream]
Saving to: ‘harbor-offline-installer-v2.6.0.tgz.1’

harbor-offline-installer-v2.6.0 100%[====================================================>] 721.10M  5.24MB/s    in 2m 32s

2022-09-03 00:53:30 (4.73 MB/s) - ‘harbor-offline-installer-v2.6.0.tgz.1’ saved [756124163/756124163]

--2022-09-03 00:53:30--  https://github.com/goharbor/harbor/releases/download/v2.6.0/harbor-online-installer-v2.6.0.tgz
Connecting to github.com (github.com)|20.200.245.247|:443... connected.
HTTP request sent, awaiting response... 302 Found
Location: https://objects.githubusercontent.com/github-production-release-asset-2e65be/50613991/9d327054-8d9a-4f7e-a232-eefee1a9c721?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAIWNJYAX4CSVEH53A%2F20220902%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20220902T155331Z&X-Amz-Expires=300&X-Amz-Signature=889489d6e00ff297ffba44a9720d47c9f7a46ffe437edbe5f327c6124feaf1fd&X-Amz-SignedHeaders=host&actor_id=0&key_id=0&repo_id=50613991&response-content-disposition=attachment%3B%20filename%3Dharbor-online-installer-v2.6.0.tgz&response-content-type=application%2Foctet-stream [following]
--2022-09-03 00:53:30--  https://objects.githubusercontent.com/github-production-release-asset-2e65be/50613991/9d327054-8d9a-4f7e-a232-eefee1a9c721?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAIWNJYAX4CSVEH53A%2F20220902%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20220902T155331Z&X-Amz-Expires=300&X-Amz-Signature=889489d6e00ff297ffba44a9720d47c9f7a46ffe437edbe5f327c6124feaf1fd&X-Amz-SignedHeaders=host&actor_id=0&key_id=0&repo_id=50613991&response-content-disposition=attachment%3B%20filename%3Dharbor-online-installer-v2.6.0.tgz&response-content-type=application%2Foctet-stream
Connecting to objects.githubusercontent.com (objects.githubusercontent.com)|185.199.110.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 10687 (10K) [application/octet-stream]
Saving to: ‘harbor-online-installer-v2.6.0.tgz’

harbor-online-installer-v2.6.0. 100%[====================================================>]  10.44K  --.-KB/s    in 0.003s

2022-09-03 00:53:31 (3.17 MB/s) - ‘harbor-online-installer-v2.6.0.tgz’ saved [10687/10687]

FINISHED --2022-09-03 00:53:31--
Total wall clock time: 2m 34s
Downloaded: 2 files, 721M in 2m 32s (4.73 MB/s)

$ wget --version
GNU Wget 1.20.3 built on linux-gnu.

3. harbor 인스톨 파일 압축 해제

tip. 가이드는 /volume3/docker/harbor 경로에 설치하는 예시로 설명합니다.

1. 다운로드한 harbor-offline-installer-v2.6.0.tgz (721MB) 파일을 /volume3/docker 경로에 복사

$ cd /volume3/docker
$ tar xvf harbor-offline-installer-v2.6.0.tgz
압축 해제하면 harbor 디렉토리가 생성됨
$ cd harbor

$ cd /volume3/docker

// 압축 해제 되면서 harbor 디렉토리가 생성됨
$ tar xvf harbor-offline-installer-v2.6.0.tgz
harbor/harbor.v2.6.0.tar.gz
harbor/prepare
harbor/LICENSE
harbor/install.sh
harbor/common.sh
harbor/harbor.yml.tmpl

$ cd harbor

$ ls -l
total 1480656
-rwxrwxrwx+ 1 test users      3639 Aug 28 13:26 common.sh
drwxrwxrwx+ 1 test users       124 Sep  2 22:31 data
drwxrwxrwx+ 1 test users       204 Sep  2 22:36 harbor
-rwxrwxrwx+ 1 test users 756124163 Sep  2 21:48 harbor-offline-installer-v2.6.0.tgz
-rwxrwxrwx+ 1 test users     10687 Sep  2 21:45 harbor-online-installer-v2.6.0.tgz
-rwxrwxrwx+ 1 test users 760014737 Aug 28 13:27 harbor.v2.6.0.tar.gz
-rwxrwxrwx+ 1 test users     10491 Aug 28 13:26 harbor.yml.tmpl
-rwxrwxrwx+ 1 test users      3171 Aug 28 13:26 install.sh
-rwxrwxrwx+ 1 test users     11347 Aug 28 13:26 LICENSE
drwxrwxrwx+ 1   10000 10000       182 Sep  2 22:33 log
-rwxrwxrwx+ 1 test users      1881 Aug 28 13:26 prepare

4. harbor 환경 설정

1. 환경설정 템플릿 파일을 harbor.yml으로 복사

$ cp harbor.yml.tmpl harbor.yml

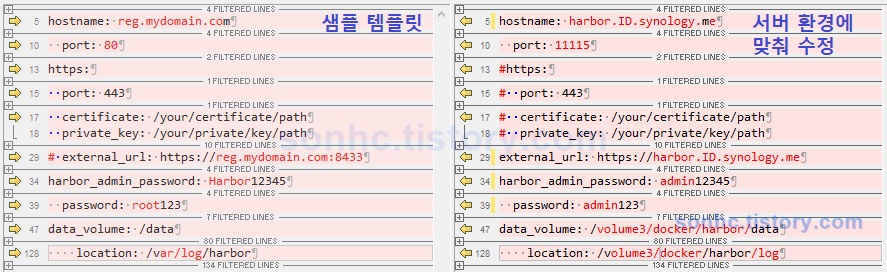

2. 환경설정 harbor.yml 파일 수정

$ vim harbor.yml

// hostname, port, admin 암호, DB 암호 지정
[5라인] hostname: <HOST_IP or DNS>     // 예) harbor.<ID>.synology.me
[10라인] port: <DOCKER_PORT>    // 예) 50001
[29라인] external_url:https://<HOST_IP or DNS>     // 예) https://harbor.<ID>.synology.me (NPM 설정된 외부 주소)
[34라인] harbor_admin_password: <ADMIN_PASSWORD> // 예) 기본값 Harbor12345
[39라인] password: <DB_PASSWORD>   // 예) 기본값 root123
[48라인] data_volume: <VOLUME_PATH_DATA> // 예) /volume3/docker/harbor/data
[127라인] location: <VOLUME_PATH_LOG> // 예) /volume3/docker/harbor/log

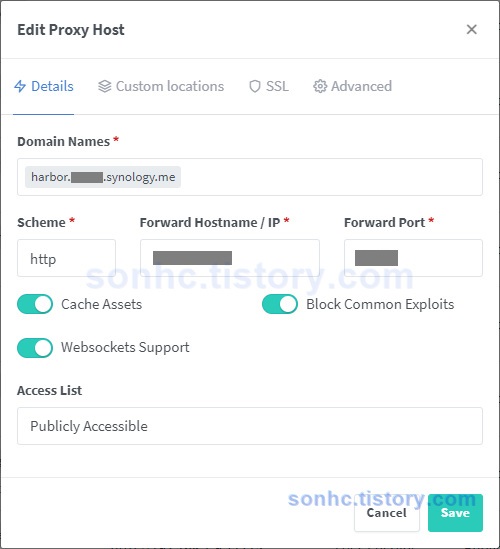

// https 주석 처리 (NPM으로 https 적용 예정)
[13라인] #https:
[15라인] #  port: 443
[17라인] #  certificate: /your/certificate/path
[18라인] #  private_key: /your/private/key/path

5. harbor 설치

tip. docker-compose 커맨드가 설치되어 있어야 합니다.
혹시라도 docker-compose 명령이 없다면 먼저 설치해주세요. (자세한 설명 생략)

1. volunm 경로 생성 (미리 생성해 놓지 않으면 install 진행하다 error 발생하면서 멈춤)

$ mkdir -p /volume3/docker/harbor/data
$ mkdir -p /volume3/docker/harbor/log
$ mkdir -p /volume3/docker/harbor/common/config

2. install.sh 실행

$ sudo ./install.sh

$ sudo ./install.sh
Password:
/volume3/docker/harbor/common.sh: line 13: tput: command not found
/volume3/docker/harbor/common.sh: line 14: tput: command not found
/volume3/docker/harbor/common.sh: line 15: tput: command not found
/volume3/docker/harbor/common.sh: line 17: tput: command not found
/volume3/docker/harbor/common.sh: line 18: tput: command not found
/volume3/docker/harbor/common.sh: line 19: tput: command not found
/volume3/docker/harbor/common.sh: line 20: tput: command not found
/volume3/docker/harbor/common.sh: line 21: tput: command not found

[Step 0]: checking if docker is installed ...

Note: docker version: 20.10.3

[Step 1]: checking docker-compose is installed ...

Note: docker-compose version: 1.28.5

[Step 2]: loading Harbor images ...
915f79eed965: Loading layer [==================================================>]  37.77MB/37.77MB
53e17aa1994a: Loading layer [==================================================>]  8.898MB/8.898MB
82205c155ee7: Loading layer [==================================================>]  3.584kB/3.584kB
7ffa6a408e36: Loading layer [==================================================>]   2.56kB/2.56kB
1a2ed94f447f: Loading layer [==================================================>]  97.91MB/97.91MB
e031eb4548cd: Loading layer [==================================================>]   98.7MB/98.7MB
Loaded image: goharbor/harbor-jobservice:v2.6.0
1ddd239fd081: Loading layer [==================================================>]  5.755MB/5.755MB
51cfe17ad552: Loading layer [==================================================>]  4.096kB/4.096kB
d66b11611927: Loading layer [==================================================>]   17.1MB/17.1MB
95ec06f9ede8: Loading layer [==================================================>]  3.072kB/3.072kB
4915db4c8a75: Loading layer [==================================================>]  29.13MB/29.13MB
de0dd696d1e4: Loading layer [==================================================>]  47.03MB/47.03MB
Loaded image: goharbor/harbor-registryctl:v2.6.0
135ff4cdf210: Loading layer [==================================================>]  119.9MB/119.9MB
971eb518f877: Loading layer [==================================================>]  3.072kB/3.072kB
dca613dfbd94: Loading layer [==================================================>]   59.9kB/59.9kB
86701cd4bbd5: Loading layer [==================================================>]  61.95kB/61.95kB
Loaded image: goharbor/redis-photon:v2.6.0
db777e2b34a6: Loading layer [==================================================>]    119MB/119MB
Loaded image: goharbor/nginx-photon:v2.6.0
e8b623356728: Loading layer [==================================================>]  6.283MB/6.283MB
de97fd65d649: Loading layer [==================================================>]  4.096kB/4.096kB
80d89e68db87: Loading layer [==================================================>]  3.072kB/3.072kB
d30aaa68403a: Loading layer [==================================================>]  91.21MB/91.21MB
09c2eb3f70bf: Loading layer [==================================================>]  12.86MB/12.86MB
d033d51a66ed: Loading layer [==================================================>]  104.9MB/104.9MB
Loaded image: goharbor/trivy-adapter-photon:v2.6.0
d68ea3579314: Loading layer [==================================================>]  43.85MB/43.85MB
ba0eac6b665d: Loading layer [==================================================>]  65.88MB/65.88MB
6e6fdfe712e6: Loading layer [==================================================>]  18.03MB/18.03MB
936f2805133b: Loading layer [==================================================>]  65.54kB/65.54kB
d1cc2359b34f: Loading layer [==================================================>]   2.56kB/2.56kB
3db4c06ddde2: Loading layer [==================================================>]  1.536kB/1.536kB
ffa89d14f0f8: Loading layer [==================================================>]  12.29kB/12.29kB
5b6fc339f848: Loading layer [==================================================>]  2.612MB/2.612MB
bf25a672c522: Loading layer [==================================================>]  379.9kB/379.9kB
Loaded image: goharbor/prepare:v2.6.0
f03402c298a4: Loading layer [==================================================>]  127.1MB/127.1MB
ec437899a2d4: Loading layer [==================================================>]  3.584kB/3.584kB
fc987efeff2f: Loading layer [==================================================>]  3.072kB/3.072kB
ccac4ecb9fab: Loading layer [==================================================>]   2.56kB/2.56kB
76126881776b: Loading layer [==================================================>]  3.072kB/3.072kB
e5710297bc49: Loading layer [==================================================>]  3.584kB/3.584kB
86ada12d4961: Loading layer [==================================================>]  20.99kB/20.99kB
Loaded image: goharbor/harbor-log:v2.6.0
4a1effd4840f: Loading layer [==================================================>]  8.898MB/8.898MB
3972ad56d11c: Loading layer [==================================================>]  24.63MB/24.63MB
e13ac1c66f56: Loading layer [==================================================>]  4.608kB/4.608kB
b38b2979e8ca: Loading layer [==================================================>]  25.42MB/25.42MB
Loaded image: goharbor/harbor-exporter:v2.6.0
1616a4b7b75d: Loading layer [==================================================>]    119MB/119MB
554400dd99a8: Loading layer [==================================================>]  7.535MB/7.535MB
6716f4e67dff: Loading layer [==================================================>]  1.185MB/1.185MB
Loaded image: goharbor/harbor-portal:v2.6.0
2a50c39af894: Loading layer [==================================================>]  1.096MB/1.096MB
f51c34c3ca3f: Loading layer [==================================================>]  5.888MB/5.888MB
b5cc7d5afb32: Loading layer [==================================================>]    169MB/169MB
e38b1eb3cd75: Loading layer [==================================================>]  16.72MB/16.72MB
8a0ad5839a99: Loading layer [==================================================>]  4.096kB/4.096kB
b31920119f7b: Loading layer [==================================================>]  6.144kB/6.144kB
95588b7a97e8: Loading layer [==================================================>]  3.072kB/3.072kB
37736a8af56d: Loading layer [==================================================>]  2.048kB/2.048kB
f5d998d20d26: Loading layer [==================================================>]   2.56kB/2.56kB
3665e4285a3e: Loading layer [==================================================>]   2.56kB/2.56kB
324a12cf3159: Loading layer [==================================================>]   2.56kB/2.56kB
54caba94e156: Loading layer [==================================================>]  8.704kB/8.704kB
Loaded image: goharbor/harbor-db:v2.6.0
470e6e891906: Loading layer [==================================================>]   5.75MB/5.75MB
4088c7055d35: Loading layer [==================================================>]  8.718MB/8.718MB
2d362b585526: Loading layer [==================================================>]  14.47MB/14.47MB
b4769e45480f: Loading layer [==================================================>]  29.29MB/29.29MB
83e39cfb4f90: Loading layer [==================================================>]  22.02kB/22.02kB
640999c19ee7: Loading layer [==================================================>]  14.47MB/14.47MB
Loaded image: goharbor/notary-signer-photon:v2.6.0
85eb81bb9355: Loading layer [==================================================>]  5.755MB/5.755MB
0e885f83b805: Loading layer [==================================================>]  90.88MB/90.88MB
1a9fd2a13905: Loading layer [==================================================>]  3.072kB/3.072kB
084b31f7f0cd: Loading layer [==================================================>]  4.096kB/4.096kB
1b3ae6218261: Loading layer [==================================================>]  91.67MB/91.67MB
Loaded image: goharbor/chartmuseum-photon:v2.6.0
f2f491399890: Loading layer [==================================================>]  8.898MB/8.898MB
9e8aca626b7b: Loading layer [==================================================>]  3.584kB/3.584kB
7209c3a47c64: Loading layer [==================================================>]   2.56kB/2.56kB
b00a81023fca: Loading layer [==================================================>]  80.74MB/80.74MB
9a69cb50757d: Loading layer [==================================================>]  5.632kB/5.632kB
43ecb1743b7e: Loading layer [==================================================>]  105.5kB/105.5kB
209ea1fa2634: Loading layer [==================================================>]  44.03kB/44.03kB
52f401aa0ea0: Loading layer [==================================================>]  81.68MB/81.68MB
d09eb77e4ec9: Loading layer [==================================================>]   2.56kB/2.56kB
Loaded image: goharbor/harbor-core:v2.6.0
3c6f934a9b56: Loading layer [==================================================>]  5.755MB/5.755MB
b3bb2335fb3a: Loading layer [==================================================>]  4.096kB/4.096kB
371f4a2117d4: Loading layer [==================================================>]  3.072kB/3.072kB
1b3ba34ba7db: Loading layer [==================================================>]   17.1MB/17.1MB
621e061b4f88: Loading layer [==================================================>]   17.9MB/17.9MB
Loaded image: goharbor/registry-photon:v2.6.0
b8b9704ed345: Loading layer [==================================================>]   5.75MB/5.75MB
53cb970e3348: Loading layer [==================================================>]  8.718MB/8.718MB
9cb4357dfa83: Loading layer [==================================================>]  15.88MB/15.88MB
ecdb7cd58026: Loading layer [==================================================>]  29.29MB/29.29MB
d8e381266109: Loading layer [==================================================>]  22.02kB/22.02kB
d1a45ff5c697: Loading layer [==================================================>]  15.88MB/15.88MB
Loaded image: goharbor/notary-server-photon:v2.6.0

[Step 3]: preparing environment ...

[Step 4]: preparing harbor configs ...
prepare base dir is set to /volume3/docker/harbor
WARNING:root:WARNING: HTTP protocol is insecure. Harbor will deprecate http protocol in the future. Please make sure to upgrade to https
Generated configuration file: /config/portal/nginx.conf
Generated configuration file: /config/log/logrotate.conf
Generated configuration file: /config/log/rsyslog_docker.conf
Generated configuration file: /config/nginx/nginx.conf
Generated configuration file: /config/core/env
Generated configuration file: /config/core/app.conf
Generated configuration file: /config/registry/config.yml
Generated configuration file: /config/registryctl/env
Generated configuration file: /config/registryctl/config.yml
Generated configuration file: /config/db/env
Generated configuration file: /config/jobservice/env
Generated configuration file: /config/jobservice/config.yml
Generated and saved secret to file: /data/secret/keys/secretkey
Successfully called func: create_root_cert
Generated configuration file: /compose_location/docker-compose.yml
Clean up the input dir

Note: stopping existing Harbor instance ...
Removing network harbor_harbor
WARNING: Network harbor_harbor not found.

[Step 5]: starting Harbor ...
Creating network "harbor_harbor" with the default driver
Creating harbor-log ... done
Creating harbor-db     ... done
Creating redis         ... done
Creating registryctl   ... done
Creating harbor-portal ... done
Creating registry      ... done
Creating harbor-core   ... done
Creating nginx             ... done
Creating harbor-jobservice ... done
✔ ----Harbor has been installed and started successfully.----

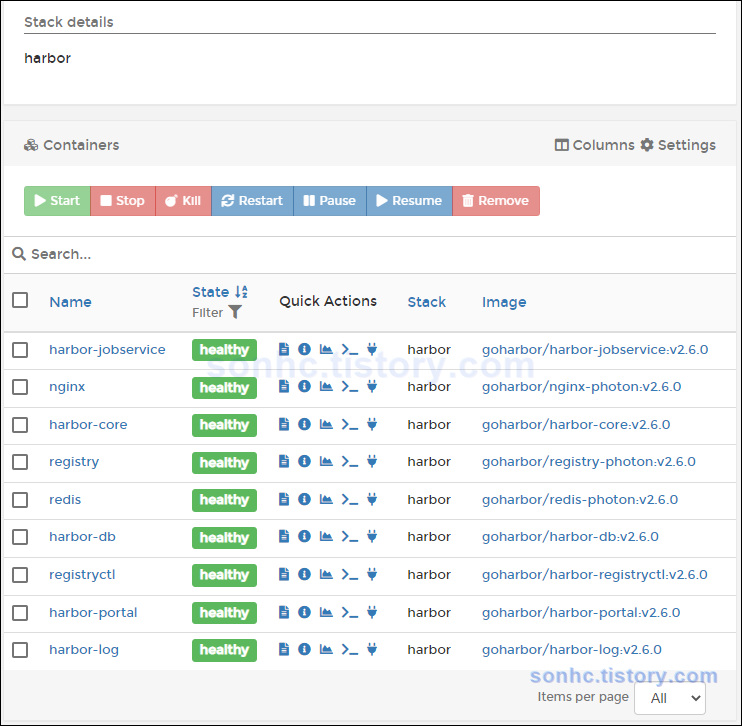

2. harbor 컨테이너 동작 확인

$ sudo docker-compose ps

// 정상인 경우 = 모두 다 Up (health) 인지 확인
$ sudo docker-compose ps
Name                     Command                  State                 Ports
---------------------------------------------------------------------------------------------
harbor-core         /harbor/entrypoint.sh            Up (healthy)
harbor-db           /docker-entrypoint.sh 96 13      Up (healthy)
harbor-jobservice   /harbor/entrypoint.sh            Up (healthy)
harbor-log          /bin/sh -c /usr/local/bin/ ...   Up (healthy)   127.0.0.1:1514->10514/tcp
harbor-portal       nginx -g daemon off;             Up (healthy)
nginx               nginx -g daemon off;             Up (healthy)   0.0.0.0:11115->8080/tcp
redis               redis-server /etc/redis.conf     Up (healthy)
registry            /home/harbor/entrypoint.sh       Up (healthy)
registryctl         /home/harbor/start.sh            Up (healthy)

tip. 만약 docker-compose ps로 확인한 harbor 서비스 중에 Restarting 뜨는 항목이 있다면
sudo docker-compose down으로 삭제하고, 다시 sudo ./install.sh 으 재설치해보세요.
(가이드를 작성하려고 2-3번 설치하는 과정에서 저도 한번 발생한 증상이라 tip으로 남겨둡니다.)

// 문제있는 경우 = 모두 다 Up (headlth)가 아닌 경우...
$ sudo docker-compose ps
      Name                     Command                       State                     Ports
------------------------------------------------------------------------------------------------------
harbor-core         /harbor/entrypoint.sh            Up (health: starting)
harbor-db           /docker-entrypoint.sh 96 13      Restarting
harbor-jobservice   /harbor/entrypoint.sh            Restarting
harbor-log          /bin/sh -c /usr/local/bin/ ...   Up (healthy)            127.0.0.1:1514->10514/tcp
harbor-portal       nginx -g daemon off;             Up (healthy)
nginx               nginx -g daemon off;             Up (healthy)            0.0.0.0:11115->8080/tcp
redis               redis-server /etc/redis.conf     Up (healthy)
registry            /home/harbor/entrypoint.sh       Up (healthy)
registryctl         /home/harbor/start.sh            Up (healthy)

$ sudo docker-compose down
Stopping registryctl ... done
Stopping harbor-log  ... done
Removing harbor-jobservice ... done
Removing nginx             ... done
Removing harbor-core       ... done
Removing registry          ... done
Removing harbor-portal     ... done
Removing registryctl       ... done
Removing redis             ... done
Removing harbor-db         ... done
Removing harbor-log        ... done
Removing network harbor_harbor

$ sudo ./install.sh
(생략)

// 다시 ps 명령으로 모두 다 Up (health) 인지 확인
$ sudo docker-compose ps
Name                     Command                  State                 Ports
---------------------------------------------------------------------------------------------
harbor-core         /harbor/entrypoint.sh            Up (healthy)
harbor-db           /docker-entrypoint.sh 96 13      Up (healthy)
harbor-jobservice   /harbor/entrypoint.sh            Up (healthy)
harbor-log          /bin/sh -c /usr/local/bin/ ...   Up (healthy)   127.0.0.1:1514->10514/tcp
harbor-portal       nginx -g daemon off;             Up (healthy)
nginx               nginx -g daemon off;             Up (healthy)   0.0.0.0:11115->8080/tcp
redis               redis-server /etc/redis.conf     Up (healthy)
registry            /home/harbor/entrypoint.sh       Up (healthy)
registryctl         /home/harbor/start.sh            Up (healthy)

Tip. 설치한 harbor를 삭제하고 싶다면...

$ sudo docker-compose down

$ sudo docker-compose down
Stopping nginx             ... done
Stopping harbor-jobservice ... done
Stopping harbor-core       ... done
Stopping registryctl       ... done
Stopping registry          ... done
Stopping harbor-portal     ... done
Stopping redis             ... done
Stopping harbor-db         ... done
Stopping harbor-log        ... done
Removing nginx             ... done
Removing harbor-jobservice ... done
Removing harbor-core       ... done
Removing registryctl       ... done
Removing registry          ... done
Removing harbor-portal     ... done
Removing redis             ... done
Removing harbor-db         ... done
Removing harbor-log        ... done
Removing network harbor_harbor

// docker image 까지 삭제하고 싶다면, harbor로 검색해서
$ sudo docker images | grep harbor
goharbor/harbor-exporter           v2.6.0          abb2f54ff016   5 days ago      94.5MB
goharbor/chartmuseum-photon        v2.6.0          bd0057522e24   5 days ago      225MB
goharbor/redis-photon              v2.6.0          39f3ba8729b9   5 days ago      155MB
goharbor/trivy-adapter-photon      v2.6.0          f0bfdaf83591   5 days ago      252MB
goharbor/notary-server-photon      v2.6.0          e9470194b316   5 days ago      112MB
goharbor/notary-signer-photon      v2.6.0          2cfb256ff549   5 days ago      110MB
goharbor/harbor-registryctl        v2.6.0          0a1f09b3dace   5 days ago      136MB
goharbor/registry-photon           v2.6.0          76aee5aa231c   5 days ago      77.6MB
goharbor/nginx-photon              v2.6.0          e35e9e75dc24   5 days ago      154MB
goharbor/harbor-log                v2.6.0          f1f66d3421be   5 days ago      161MB
goharbor/harbor-jobservice         v2.6.0          c28d745f640d   5 days ago      241MB
goharbor/harbor-core               v2.6.0          538081eb14b9   5 days ago      207MB
goharbor/harbor-portal             v2.6.0          92ef4c829298   5 days ago      162MB
goharbor/harbor-db                 v2.6.0          4892019f0afc   5 days ago      225MB
goharbor/prepare                   v2.6.0          85d28ac66ab1   5 days ago      163MB

// 검색된 IMAGE ID를 모두 삭제하기
$ sudo docker image rm 85d28ac66ab1 4892019f0afc 92ef4c829298 538081eb14b9 c28d745f640d f1f66d3421be e35e9e75dc24 76aee5aa231c 0a1f09b3dace 2cfb256ff549 e9470194b316 f0bfdaf83591 39f3ba8729b9 bd0057522e24 abb2f54ff016
Untagged: goharbor/prepare:v2.6.0
Deleted: sha256:85d28ac66ab1df9d9f22e63aa4dbe46107227550a7a1ba696497b1fb11cd041a
Deleted: sha256:b9b1bf399c08684167d19197c378571977f11b69fff3dc05cde2b12952711a54
Deleted: sha256:519c8f9fe5b18c2f0de15a4788ddab471d1dbd227550044da4d5ad83c65e2c8d
Deleted: sha256:d9c0db83ff40bccf68287da795fdae7128f713b7086c4eef5d674fdab9800914
Deleted: sha256:8939347f1b3e778de12b4f95c97c0d6cfa8d1ee5f756fc3cecf18dd43e90e450
Deleted: sha256:ac285f7df432b73b945f53a8edffd91580c37eb600c92de4e51f599ca3ac8946
Deleted: sha256:cf38140615e3d39f721d93cce49d7bc7ddbaf00cac0124700681bf506d6c7eca
Deleted: sha256:3ac29ad56c88a56b5adaae726cc88c2092af888333e3b380894b0f2c5803feab
Deleted: sha256:3a753f0fc7bf408d925b9791cc50d5e812f90b07be6b41738fc922a3366ae848
Deleted: sha256:2656e76edb2fa02a7c7f100cefa2fe04807dc2f0b86531ee4090ccedf9d3310e
Untagged: goharbor/harbor-db:v2.6.0
Untagged: goharbor/harbor-db@sha256:b7057aba5dc106cefbe4be1504093310ca1bd5ad307d3255e5eb6b0e5612d24d
Deleted: sha256:4892019f0afcf4fd8cb86d1021529b942794d9cec4e11761a303569018dbaa54
Deleted: sha256:24d2711a602bfd93ecfa3111e46bcf9796f3500f3019ad6705045a5254b7262e
Deleted: sha256:b3335da2ba50374af659190dda146d688bda77735aeda34718a69242ef28820b
Deleted: sha256:4cda7a6f24eb842e04bd63c553ee423ab044a4d011bfe1a812f2b00e8dd0eff0
Deleted: sha256:563558e7b7d0b9dd26ec12bf78edbb5c4dae9e90761a2aef0cd4cacf226ca8b4
Deleted: sha256:5492d81abbc314399db0317c10845b85462a2d31dce8e73e445eb346c815a3c7
Deleted: sha256:9359b42643d283f4bfbfb0918178a01d749ca3da0520eac554c3fe579d722a37
Deleted: sha256:b26d0aae53b5db94449dbd0dd9a377b56477359130428463353539a585e64a17
Deleted: sha256:90107b459de43a034d4baaa49cccd0920140f334bfe2122642af9f38464adfa9
Deleted: sha256:6f012102edc74147d04ae74d6c58292a60d551fd56fae2ade92d805d71254893
Deleted: sha256:2b67db7ded21a42496294b9826ccb0c17a8f19a992432f9ee5b46c3adb770afb
Deleted: sha256:8397350ad3f3d26476dc74eec708fb560ee717418909954e6d5e7bb8f6e2c044
Deleted: sha256:3692ff79b5355ebecf83b963dc364e75ca9cc059ae00c75be917eaba5ca23e63
Untagged: goharbor/harbor-portal:v2.6.0
Untagged: goharbor/harbor-portal@sha256:4699307073cf5ba8e0f346e2956354cde75f474d2d44b5f22d14ae2e8f4b094e
Deleted: sha256:92ef4c82929808aabbe8471100d0e2e4631968dddadd45606dc8b9aacbe75ccb
Deleted: sha256:350c892fd5999b68b79107f0de24d4ab54c5cda1952539cbff31f37f156f30c1
Deleted: sha256:763bc5dc93f08523bf551624c6ae5c6b86ab3fe3ef8ff39bf2f63cac51f54024
Deleted: sha256:4f945da2452c219397b92174e9e401c697c8740f570734766cb26ee062857c28
Untagged: goharbor/harbor-core:v2.6.0
Untagged: goharbor/harbor-core@sha256:2f8c6f136606ba736db0673a5acab19ed61ada618e58453267eb0f4bc6b79f18
Deleted: sha256:538081eb14b95c1e606fceccf1a3f93d93f01ac90be950260e8ccd78c39dd2c6
Deleted: sha256:f857b9c7ad7b8d4572ba0f4fc4fb643786bbfc538971b7139e51aa14ca9c9e0a
Deleted: sha256:dfd16a11d14b240a1501414f58c2ae174a9d4b75450a3783d6849164542878aa
Deleted: sha256:211521d20747b255b48d97ec326fa829fa25904f98d250a8ef0c34961f7260d3
Deleted: sha256:0736dd30fe433073048213b3e35bb0f007182cc080190d92a8a760cbd9a4c703
Deleted: sha256:94b26cdb4bb3c12c1b31e9e46f1cf234ac9d4f20fb013dd7c5d4ae58c0e7dbf8
Deleted: sha256:2f7c10f36521e0e19aa61b2f16edffe6432485fe7fe3b24d086f23511ba7adcf
Deleted: sha256:ce568616b7e78aae32138d72c77bdf92a5cd4adc6d3090df68c5e29665656da6
Deleted: sha256:058b8f76980bca0eff7cbaa30d92d218894e51f324e71f5d7bba33f74e3a30b2
Deleted: sha256:1fa42311ab9e39067180845eafd7dfdccd9166495e0af4f517de172b4022f55e
Untagged: goharbor/harbor-jobservice:v2.6.0
Untagged: goharbor/harbor-jobservice@sha256:3203cd019ece531d241914b8804279a45fe5e1049c856b7099742a246aa905cf
Deleted: sha256:c28d745f640d53fe491d0107fd2dcd8efc0fbf9eac79bde49f62c9e9a08a166f
Deleted: sha256:0061fc641857b58e5412392142bf30185cdd2028e08177817de2b1218f79f295
Deleted: sha256:0deb56e3a70cbfe18f3cef3e795336b6794bc7f2267892bf19d7a181a6bdc7f1
Deleted: sha256:66af281bb4e4ac4d4684453910506e1c925184b174fae8cdd8325263e6349f00
Deleted: sha256:01d05019a2ba1b1d5320e37d53295ca32c621ed41213450882575ab2d13c274d
Deleted: sha256:614ea8c5d9d418a20dff758fa4219c2361dbf45182078bc643ede593b7dc8999
Untagged: goharbor/harbor-log:v2.6.0
Untagged: goharbor/harbor-log@sha256:1f0d06a1f32a1faeebefb4dd60f09a24235e868ae96e4f40dce25bb8cc135ca6
Deleted: sha256:f1f66d3421bea04b0c10f845b312e7da9ada4b7c40fdde6d5208da9c74e637ce
Deleted: sha256:0dff7576f0dfa166286105d8511678ce72028ac51af6b42782fb5295d53f11ea
Deleted: sha256:17d149da5d6a036a3c03f30ffd947e76c833b3dadc0c8db653fad6edcaf8f05d
Deleted: sha256:5d4cfdc6391980cf57996af6be800ed8ad6a9a6e9f6cb9a0f1fa8ae5d3d44ced
Deleted: sha256:56aa29f83ce26d8b288cf17f4f911cb11761fcbb09703d5efde85f0fac356b4c
Deleted: sha256:a03c0573aefcd573dc4a2cf57d1d2a0c0be064a47793f502f6c14943cdc5ddc4
Deleted: sha256:d98f291f2ae0f003b9ce1b9c246e7f2d7af041490842d5a7dc3ee8edc847dab0
Deleted: sha256:174b0ae9a83c6918ecf4af9fa895493fe4e1744f439301cf287b18061f517f8c
Untagged: goharbor/nginx-photon:v2.6.0
Untagged: goharbor/nginx-photon@sha256:fb9732ddab6a08fce5dc82939682f08c0b107db584a3331cf31daef29524b67f
Deleted: sha256:e35e9e75dc24f640a3f16b41475bd78b54670f13806ebc6e055b974df1926214
Deleted: sha256:d8f7366fe4ee7f0caa92b46f2579c66e5a4aeda4b974152cf1f548fc5d266ca3
Untagged: goharbor/registry-photon:v2.6.0
Untagged: goharbor/registry-photon@sha256:2c26cc0f50613cad4a5da076c752682e40a98c47aa0a90af15592f512ecb4261
Deleted: sha256:76aee5aa231cb7ee26cb72866bbbe577d9a698ce2812fe377ee512a35baa27f5
Deleted: sha256:1632938c4778f0281ad4b28be8935c782efd6e8dbecf2e551b7de5c0b1d8ea33
Deleted: sha256:19fbefc62e97f1e7e493771abfb4a4852dcda92ba8ee863a0ea457e11f0cd082
Deleted: sha256:0ceb08c53a932edb3851e0a288a3c976a22b057579c88e5ffad9045f5d2ce217
Deleted: sha256:56115bdc555bc3296d0b5a4716018e6eae0f552e569f269920ff6028bc5854d9
Deleted: sha256:c9876a3f201abc4d3c14b8d368c149d1b1a5c76c655fc1b901e4f81d135c75f3
Untagged: goharbor/harbor-registryctl:v2.6.0
Untagged: goharbor/harbor-registryctl@sha256:6683525f6a7c243be670f366199fd15745680dfe637eb1f55b643f27296bf706
Deleted: sha256:0a1f09b3daceaa94d089d6065172739c326a3ef91bf72f6953971a0cc6b2f38c
Deleted: sha256:3235a33775842fafd4758828c4980d4c967e225320750fc3c79f80fcd0921f74
Deleted: sha256:8feb36930ca9649b12e2022c796cf49cc23c531de44efdf21b006d79b3d5170d
Deleted: sha256:b24001303eb86a20c444cc737604f0b7f575bb9c93f040415113f79521f12456
Deleted: sha256:a5dc0fc6c29c1efbfc5942ff650d6e32361b95da310f595396cfbcd4685822d5
Deleted: sha256:306f37d1ea88b63b9680a65385e7ed4cdf31cbb4ea1338ab3e26060d83b0fcfc
Deleted: sha256:fcb20808d53723a3a836e1a74b2eae4800dc68518df689be458c2f6a22ed4a51
Untagged: goharbor/notary-signer-photon:v2.6.0
Deleted: sha256:2cfb256ff5497e11d9cb47b3a25a86cabeb5b0921bcf309c8925baf45c91d1ae
Deleted: sha256:4aadee991c38cc2898436aa1ec036e519aee2494721dafe0b3f0a6cb10b8f944
Deleted: sha256:de7f7332c2a21e1d778183da8274e0ab7685f48a1ab00995741e549a2e6efd56
Deleted: sha256:23aa05454a3c6a507cec17f143329038961350c0c06c72f5a70a262bf2d2500e
Deleted: sha256:72add8ff8188c20beaf263c08ed49ee41534c990c054434cec92352c59269ab0
Deleted: sha256:88814680097264ce0e2702828d75802a082e0fc0acd5700b2090df1883f515e3
Deleted: sha256:6e01ff2c0bb1abefdc1b30805c3a827e4d3c1093787ee17fc658a4490af9c0a1
Untagged: goharbor/notary-server-photon:v2.6.0
Deleted: sha256:e9470194b316ca0d63f22172ecb793a863e240228fe21d1ca384a0f8e9e15b72
Deleted: sha256:486a66519b563bb65519d5a21918c2d9f796071b7194e2d356373e30cc5308fd
Deleted: sha256:eeca4fa08e043687fe9dcda07bae826d5e95f98f4333e745729efc6bad865924
Deleted: sha256:10fdbd12d85ca92e06596edacefa0b12b2d0d7c5a63379eb43782670cef5ea32
Deleted: sha256:b42602d52ff1959e81db81a386f904c06ff2f7f799cc113d2c600beb57016a8e
Deleted: sha256:33affdea4df245b373614e7bf070ba7b71a7f5bcb68c0fdde57bad40f07efcb8
Deleted: sha256:1c8b26baac3a8e27b2aa070e4cbc0d194dcdf6ffb6ae6ace32045401a9961b91
Untagged: goharbor/trivy-adapter-photon:v2.6.0
Deleted: sha256:f0bfdaf83591581b45d2cef279ca40dd56d6bc0d216a484f0398c4714c62efee
Deleted: sha256:1aa4649d9ab4c9768ba40eb494f553c0f8a6b62df3f9560be76b68755c7eabd8
Deleted: sha256:6f26f3ef2dafa0f4da0250006988dd2a56534aa2c77a8d710ad431bb2b76cb6c
Deleted: sha256:d6db7ce3fa73e895b9c4857f96e7813fe1dde4ddd235a82b7a3f6f60dbca01a5
Deleted: sha256:f03322a8ac662bd6315daa820278fd4a993b4239276aa7b34406b1be5efd7427
Deleted: sha256:ed0bbbf94bb0a0140b2dd03500d0f6d433c9ffdff635d2c8c6fca76e67fc1c95
Deleted: sha256:ea63f3c397d3000a69b1abd285938ef70983e2a1f70e17060ecf3e7d938dfbf3
Untagged: goharbor/redis-photon:v2.6.0
Untagged: goharbor/redis-photon@sha256:57efb4b5ec08357db015aa0b3eba747fe0c3095cda91ed15f1124f84f1b3d34c
Deleted: sha256:39f3ba8729b958a33ae23201a521b65cb73b266c02227894ef1e4c9f04056f1f
Deleted: sha256:4b189c6cfa2732d8d30f17257f5a1a753e51355908a6ab64ffba9868b27df750
Deleted: sha256:c67006aedc4d27a7fd691cdcb76cde5df7f823213065702b3b2f8706bc3f1dbc
Deleted: sha256:df4f644f576c8f56f142aaa8b791fc452340ea6b35083cc350125d28c6aac3c4
Deleted: sha256:7461411a8176294e3c58f71b45749c7db7024c4d574b3f54cad8e1ad3e6b65af
Untagged: goharbor/chartmuseum-photon:v2.6.0
Deleted: sha256:bd0057522e245133c6468711a423a3351690416abc30a0e21a9f75feb20471f0
Deleted: sha256:bf0e5aa41b8c8d972c43fdda322f1a6fb59f8bcbd193b3143a5e281407b27ac4
Deleted: sha256:bb3890e66d82885608ca77c7befa39c319b96fb7eca1edf27871fd6129073dd7
Deleted: sha256:60c178c0fcf109fcc406b2fd2437abea0002e44fe98bfc670f579aa55819157f
Deleted: sha256:9430a890b79bd1cf5185c602312cedc378f012a59f1cd97d24901d4f95c71775
Deleted: sha256:e486bcf20fb10c65da621fa2c7fcc91cb60c056baa185277da47b2319be1623d
Untagged: goharbor/harbor-exporter:v2.6.0
Deleted: sha256:abb2f54ff016beb4c74c699f4bdfed6c95278bfde96b544a848c028336197017
Deleted: sha256:fe5fc50773159f82d3af639061af4d533eacf5fc523842ab5deecf1c00c5179f
Deleted: sha256:c1c32083534006b5ae25b6b75a212cf4140c78e064f9f8134a1edacf63ccbc18
Deleted: sha256:a0be2b7027e239a33409eff121fa710026343b709013768380a4c88601abcb8a
Deleted: sha256:91fa8ceae8edd53f2bf1b9b007be1f3664168875b24e5b0d4af467a13ee2e11f
Deleted: sha256:915f79eed965443878e67d93f8e0fdff5212c5c86763c093c2f8747f6adfc442
$

5. Habor 웹사이트 접속 확인

1. NPM에서 harbor sub domain 설정 및 SSL 인증서 적용 (NPM 사용에 대한 자세한 설명 생략)

2. NPM 설정한 https://harbor.<ID>.synology.me 주소로 웹사이트 접속

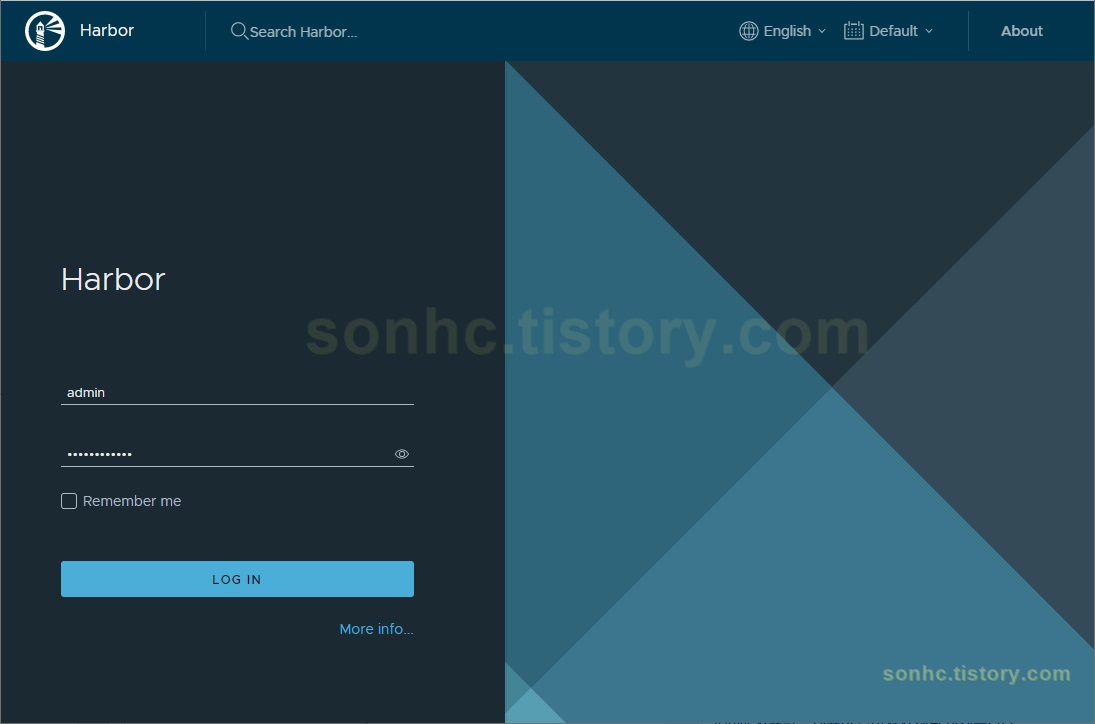

3. harbor 로그인 페이지 확인 -> ID/PW 입력 -> 로그인 확인

ID : admin
PW : harbor.yml 에 지정한 <ADMIN_PASSWORD> 입력

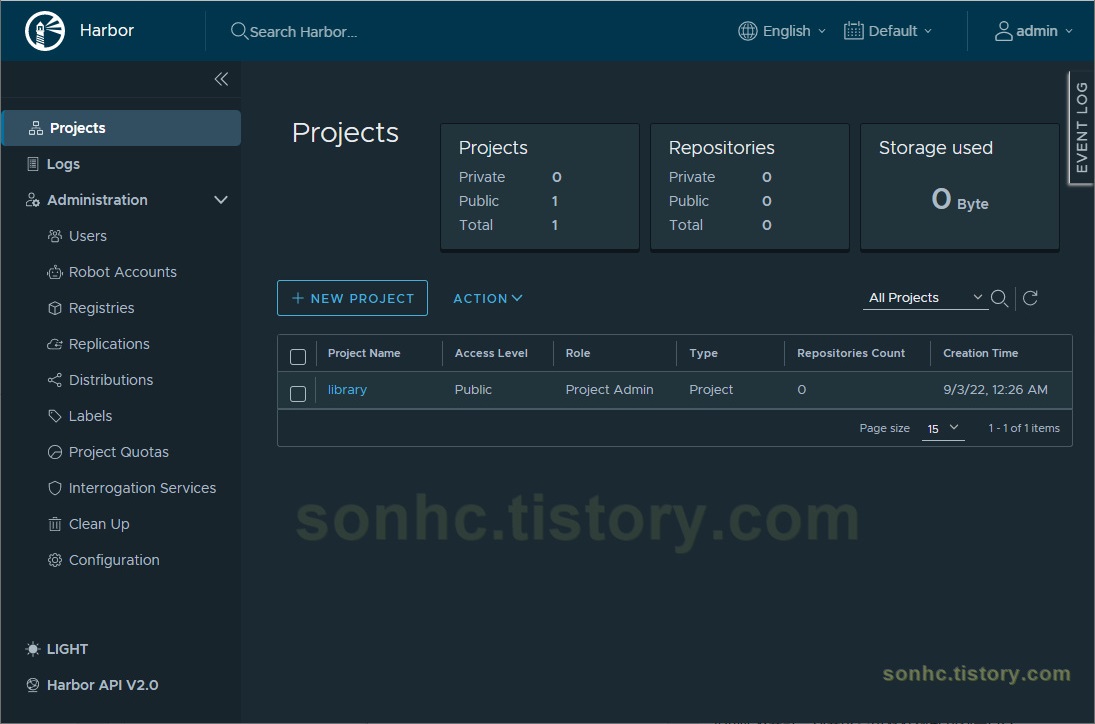

4. 관리자 로그인 확인

지금까지 harbor 서비스를 설치하고 관리자 로그인되는 것을 확인하였습니다.

6. 마치면서...

harbor는 9개의 컨테이너가 서로 연동하여 동작되는 혼합(?) 서비스이기 때문에
다른 docker image들에 비해서 설치가 복잡한 편에 속하는 것 같습니다.

가이드가 길어서 설치 과정이 다소 복잡해 보이지만 편리하게 install.sh 파일을 잘 제공해주고 있어서
harbor.yml 만 잘 설정해주면 docker-compose.yml이 자동 생성되어 9개의 컨테이너들이 알아서
설치/실행되니 설치 방법만 이해하신다면 어렵지 않게 세팅이 가능합니다.

private registry가 필요하신 분께서는 가이드 보시면서 천천히 따라 해 보세요.

harbor 세팅은 마쳤는데... private registry 사용법에 대한 내용은 설명이 쉽지 않아서...
따로 가이드를 정리하여 업로드 하겠습니다.

END

PS. 본 포스팅이 도움이 되셨다면 소중한 리플로 후기 공유해주세요. 광고 클릭도 큰 도움이 됩니다.

저작자표시 비영리 변경금지

'Guide_Tip_Tech > Docker' 카테고리의 다른 글

docker ps --format 포멧 필터링 (0)	2023.06.23
[docker] harbor 사용법 #3 - harbor 서버 image 연동 실습 (docker tag, push, pull) (0)	2022.09.03
[docker] harbor 사용법 #2 - docker client 설정 (insecure-registries) (0)	2022.09.03
[docker] harbor 사용법 #1 - harbor 서버 설정 (0)	2022.09.03
[docker] metube 설치 (docker-compose 방식) (0)	2022.08.27
[docker] webdav 설치 (docker-compose 방식) (0)	2022.08.08
[docker] navidrome 설치 (docker-compose 방식) (0)	2022.08.08
[docker] komga 설치 (docker-compose 방식) (0)	2022.08.08
[docker] kavita 설치 (docker-compose 방식) (0)	2022.08.08
[docker] file browser 설치 (docker-compose 방식) (1)	2022.08.08

sonhc's Inventorys
